Pumps & Accessories

On this page we list a sample of the windmill pumping products we offer as part of our main product line. Scroll down to view them all.  While prices are subject to change without prior notice, those prices listed below were updated 9/1/14.

CLICK HERE TO SEE NEW & USED WELL ACCESSORIES

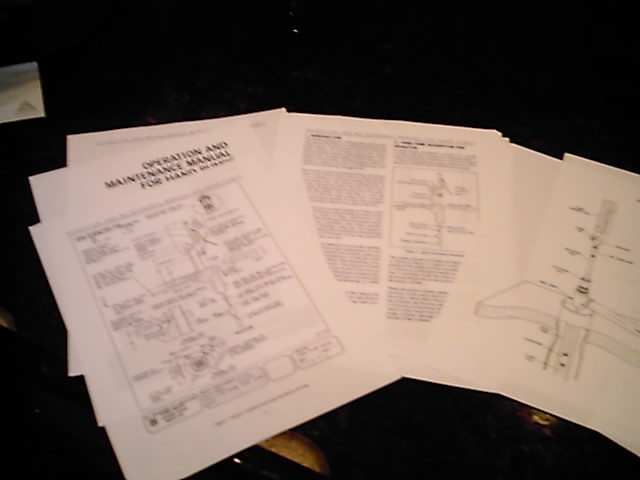

INSTALLATION GUIDE
How to Install Hand Pumps & Windmill Pumps


Guide Includes 23 Pages of
  Descriptive Narrative, Diagrams & Photo's.
Easy to follow, detailing what parts you'll need.
Installation * Assembly
Maintenance * Modification
plus tips on daily operation, start-up & shut-down.

Shipped for FREE
 $12
Black & White photo copy 8 1/2" X 11" pages

WELL CYLINDERS & STUFFING BOXES:  From Midland Mfg. Co.


This is only a small
sampling of the style
and sizes of well
cylinders we have
available. Contact us
for quotes on others
or additional details
on product descriptions
and applications.


        SIZE
        TYPE
Two
Leather
Spool
Plunger/
Other
Three
Leather
Ball
Plunger
Four
Leather
Ball
Plunger

5/8" Thread
3/4" X 18"
Stainless
Rod

1 11/16" X 16"
Closed Top
Brass for 2" casing

    $279.00

     N/A

     N/A

     N/A

2" X 14" Closed Top
Brass Shallow Well

     $160.00

      N/A

      N/A

      N/A

2" X 16" Closed Top
Brass Shallow Well

     $170.00

      N/A

      N/A

      N/A

2" X 18" Closed Top
Brass Shallow Well

     $175.00

      N/A

      N/A

      N/A

2 1/4" X 16" Closed Top
Brass Shallow Well

     $175.00

      N/A

      N/A

      N/A

2 1/4" X 18" Closed Top
Brass Shallow Well

     $185.00

      N/A

      N/A

      N/A

2 1/2" X 16" Closed Top
Brass Shallow Well

    $200.00

      N/A

      N/A

      N/A

2 1/2" X 18" Closed Top
Brass Shallow Well

    $205.00

      N/A

      N/A

      N/A

2 1/2" X 20" Closed Top
Brass Shallow Well

    $210.00

      N/A

      N/A

      N/A

3" X 14" Closed Top
Brass Shallow Well

     $245.00

      N/A

      N/A

      N/A

3" X 18" Closed Top
Brass Shallow Well

     $265.00

      N/A

      N/A

      N/A

4" X 18" Closed Top
Brass Shallow Well

     $450.00

      N/A

      N/A

      N/A

1 7/8"X18"
Open Top
Brass
     N/A

     $199.00
      $245.00



         N/A

1 7/8"X24"
Open Top
Brass
        N/A
    $219.00
    $265.00



           N/A


1 1/4"
Stuffing
Box



         N/A



         N/A



         N/A



         $95.00


2"
Stuffing
Box



         N/A



         N/A



         N/A



         $109.00


1 1/4" X 24"
Sand Well
Point

    $40.00

      N/A

      N/A

      N/A


2" X 30"
Sand Well
Point

    $60.00

      N/A

      N/A

      N/A

By-Pass for
Submerssible
& Manual Cylinder
Set-Ups

    $85.00

      N/A

      N/A

      N/A

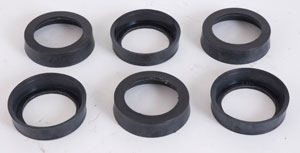

PUMP CYLINDER LEATHERS:  Made from top quality leathers, with hair side out.
Our chart just reflects common size leathers requested. We have many other sizes available too.


        SIZE
        TYPE
1 7/8"
    2"
    2 1/4"
     2 1/2"
      3"


  3 1/2"


        4"

CUPS:
Graphite Coated
      $4.25

     $5.25
      $5.50
       $5.50

      $6.50


       $8.50


      $10.50

FLAT VALVE:
Oiled Treated
        N/A
     $4.00

     $4.00

     $4.50

     $5.00



      $6.00



      $7.00


CAP GASKET:
Oil Treated

        N/A

     $4.00


     $7.25


     $4.50


     $5.00


      $5.00



      $5.00


Weight for
Flapper Valve

        N/A

     $7.50


     $7.50


     $7.50


     $8.00


     $8.00

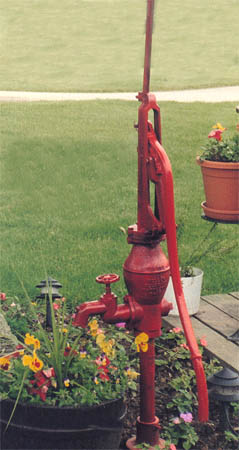

HELLER-ALLER WELL PUMPS
We are proud to offer Heller-Aller Pumps. We carry thier windmill style pump as well as thier hand pump and pitcher pump styles. These high quality pumps will provide years of service and enjoyment at reasonable prices. These are a new pumps. Most vintage pumps sold today are only in good enough condition to use as decor items as their inner threaded drop pipe bushings are either broken out or have a piece of old pipe stuck in them that can not be removed without breaking the pump. No need to worry about this when buying new.


50-ASP-6 Windmill Pump:   $699.00

Pump is ready to attach to your drop pipe and 7/16" sucker rod. This pump is ideal for yard use in forcing water to house and barn or overhead to a storage tank. Capable of working against 60 pounds of pressure; designed for extra heavy work with built in stuffing box.

Can be matched to a windmill or used as a stand alone hand pump.
Ships with sanitary seal for 6" well casings but is available for smaller casings at no extra charge when requested at time of order. Ships with hose attachment.


190-SP-6 Hand Pump:      $399.00

This pump is designed for shallow wells in the 30ft to 60ft depth range as well as citerns. It is not a "force" pump so it is not capable of pushing water overhead like the heavy duty windmill pump we sell.

It is shipped with a 6" sanitary well cap but we can substitute a 2 piece standing base or 3"/4" sanitary well cap at no additional charge if requested prior to purchase.

Pump is ready to attach to your drop pipe and sucker rod.

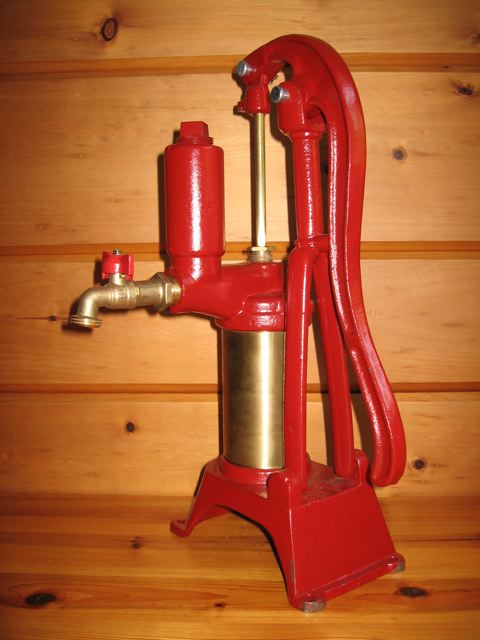

 PHB Force Pitcher Pump:       $379.00

This pump is designed for shallow wells. Maximum lift (suction) to pump is 22ft vertically but distances decrease as altitude above sea level increases. The "force" pump aspects of this design are capable of pushing water overhead 30ft as it can develope pressure of 15psi.

1 1/4" threaded female pipe inlet for water suppy, with 3/4" threaded female discharge port controled by a ball type shut off.

At 1000ft elevation suction lift is reduced to 22ft,...at 3000ft; 18ft....at 5000ft; 16ft....at 7000ft;13ft....at 9000ft;11ft suction lift.

CHECK VALVES, FOOT VALVES, WELL SEALS & PITLESS ADAPTERS, WELL POINTS:




Contact us
 for other size
applications.

        PIPE SIZE
        ITEM
1 1/4"
2"

Foot Valve,
Bronze Body,
Bronze Poppet,
SS Strainer,
Female Threads

    $32.00

     $87.00

Well Seal,
4" Well Case,
3/16" Steel Top Plate,
2100lb Load

     $27.00

      $27.00

Well Seal,
5" Well Case,
3/8"Steel Top Plate,
9000lb Load

     $34.00

      $34.00

Well Seal,
6" Well Case,
3/8"Steel Top Plate,
9000lb Load

     $38.00

      $38.00

Check Valve,
Bronze Body,
Bronze Poppet,
SS Spring & Nut,
Female Threads

     $47.00

      $87.00

Pitless Adapter,
Weld On Type,
4" Well Case,
MAASS

     $125.00

      $225.00

Pitless Adapter,
Weld On,
6" Well Case,
 MAASS

$125.00

$225.00

Well Point,
Sand Point,
60 Gauze Liner,
Stainless Outer


     $40.00

     $60.00

By-Pass for
Submerssible
& Manual Cylinder
Set-Ups

         $85.00

      N/A

Vintage Well Pumps & Parts


Your windmill display isn't complete until you add a vintage well pump at its base. We have numerous decorative non-working pumps available for that purpose or we can help you build a complete recirculating ornamental stock-tank system with running water.

Call for Availability & Prices


Windmill Pumping Accessories


FOR THOSE WITH ACTUAL WORKING WINDMILLS: We offer a large assortment of windmill accessories for those with pumping windmills. Whether you need a well cylinder, leathers, sucker rods, pump disconnect, rod giudes, stuffing box, tank float or other accessory... check with us as we offer these items, as well as many others, far below the list pricing you see on other websites. Contact us for quotes.
Save 20% - 25% Off List

Just because you don't see it in one of our pictures doesn't mean we don't have. Please take time to contact us with your needs as our selection of items is far too large to list everything available.
