Mill Identification E to F


Additional pictures were added to this page on 10/31/17.

One of the most fun aspects of acquiring and restoring a windmill is the treasure hunt itself. The "hunt" often includes identification of remnants or partial mills as many are acquired as gifts from relatives, neighbors or friends or purchased from local farmers and ranchers cleaning out years of accumulation. As a result we are often contacted to assist in the identification of a mill as knowing its manufacturer, model designation and size are important first steps towards finding parts for its restoration.

While some mills, like those made by R.G. Marcy as the Red Star or Kenwood, were copies of those made by other prominent manufacturers, most mills have unique visual characteristics beyond part casting numbers. Windmill manufacturers were always looking to create a special feature or uniqueness that would separate them from their competitors and attract new buyers. Others did it to insure their place in future sales of replacement parts. Sometimes it was the shape of the tail vane, or the shape of the bonnet. Perhaps it was a sail brace/clip, wheel arm or the configuration of the wheel hub that the manufacturer thought made their mill "the best".

We have created this website page as educational help in narrowing your search identifying your latest acquisition or the parts you are missing. While it is impossible for us to offer pictures of every windmill and its every part, we are hopeful these pictures, along with our other gallery pages, will help confirm your research or what others may have told you about your mill. This page is updated frequently as we acquire additional pictures that fit this format.

All pictures are protected by copyright laws and may not be used without the written permission of Windmill-Part.com or the original source.

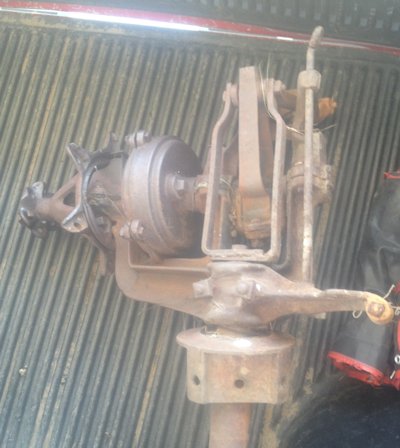

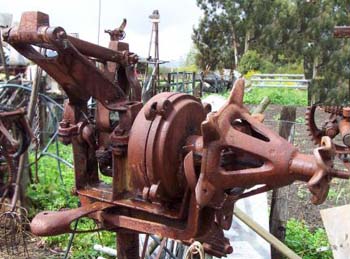

Easy

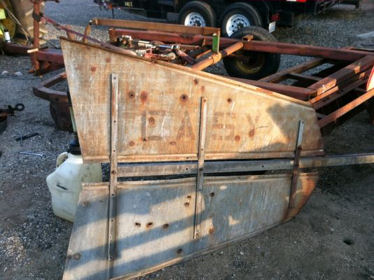

Self-Oiling Vane

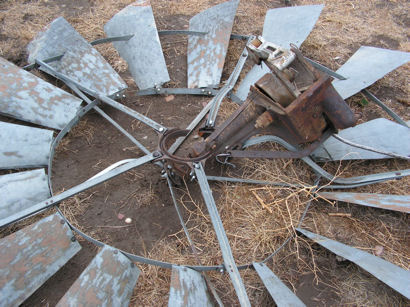

Self-Oiling Wheel

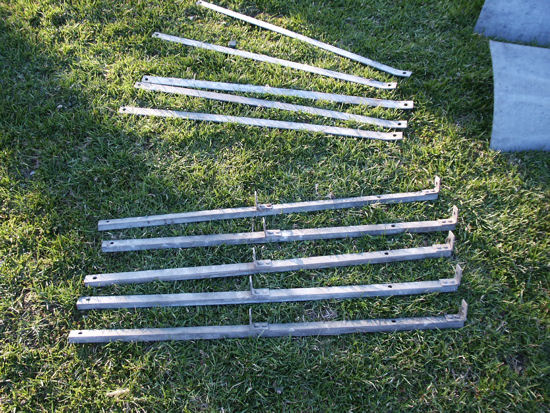

Self-Oiling Wheel Spokes


Self-Oiling Wheel Section

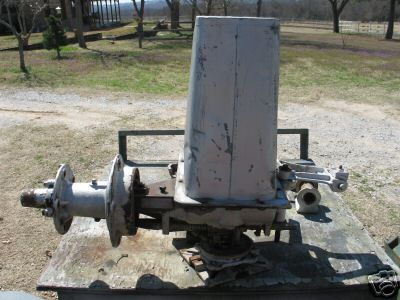

Self-Oiling Air King Head


Self-Oiling Head

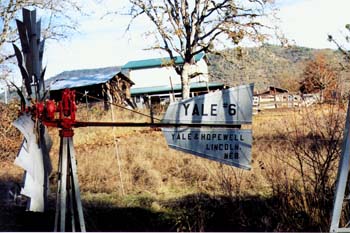

Yale #6 Planetary Gear Model


Post 1925 Yale Variant


Internal Tooth Crank Gear


Outer Sail Brace (sail face)

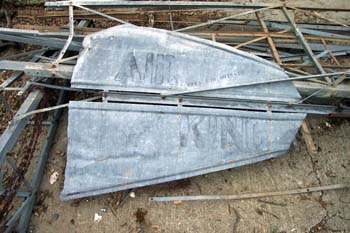

Air King Vane


Inner Sail Brace (sail face)


Yale #6 Vane Hinge


Easy Planetary Gear Motor


Vane for Planetary Gear Model

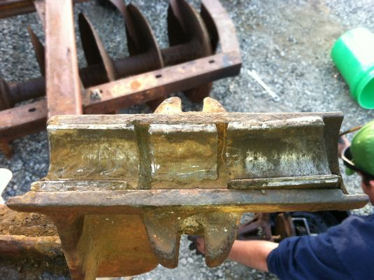

Bearing Seat On Planetary Gear Frame


Bearing Seat On Planetary Gear Frame


Planetary Gear & Hub

Eclipse


Eclipse Wheel


Wooden Vane


Eclipes, 10ft Type P

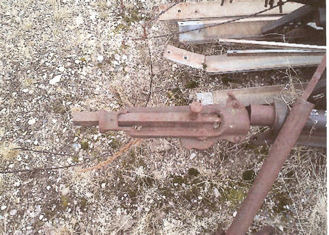

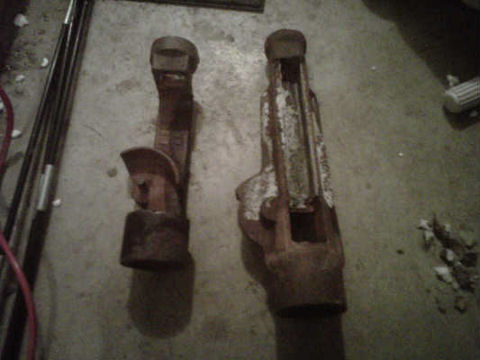

Eclipse Pump Rod Guides
Early & Mid Production Styles


Eclipse Pump Rod Guides
Early & Mid Production Styles


Eclipse Pump Rod Guide
Late Production Style


12ft Eclipse Main Frame

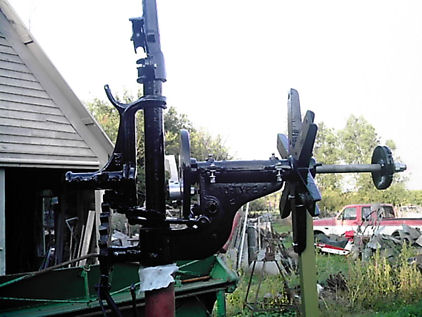

10ft Eclipse Type P Main Frame

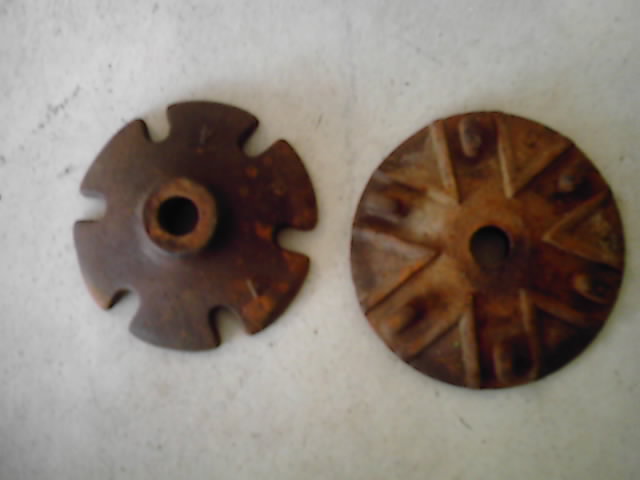

Eclipse P Front Brace Plate

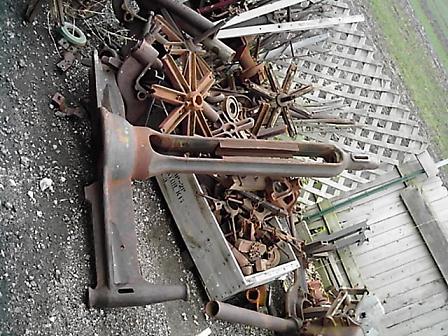

18ft Eclipse Main Frame


Railroad Eclipse Head


1875 Short Stroke Motor


Earliest "Wind Engine" Vane Design



Enterprise


10ft Main Frame, Etc

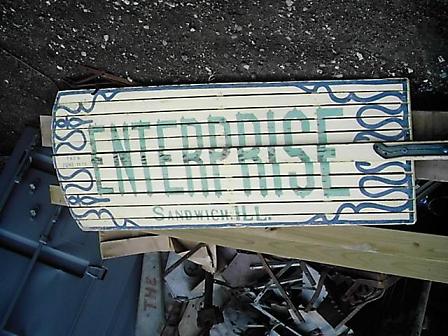

Vane

Salesman Sample


Assembled Head

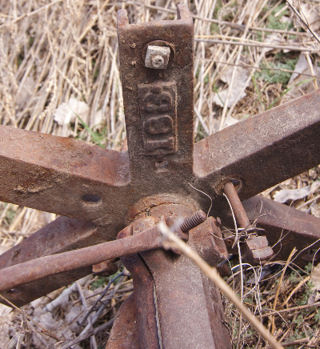

Hub



Elgin


10ft #2

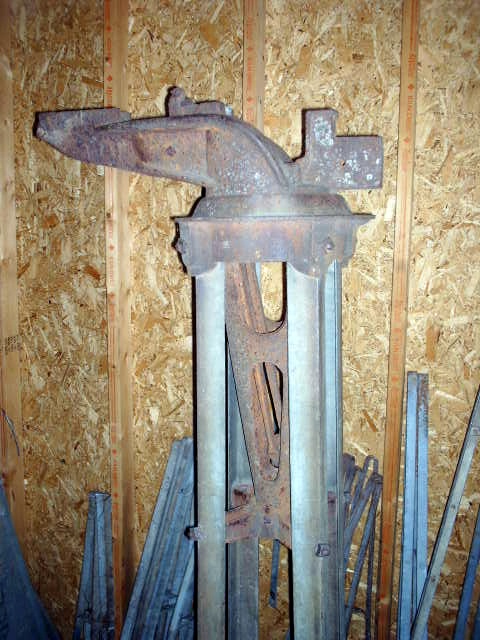

Elgin Victor

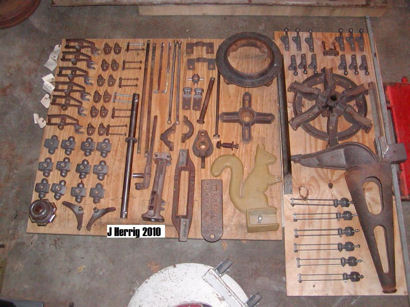

Elgin Victor Disassembled


Elgin #2 Main Frame, Tower Cap & Stub


Elgin #2 Main Frame


10ft No. 2 Head


Model E Motor & Hub


Model E Hub


Model E Hub

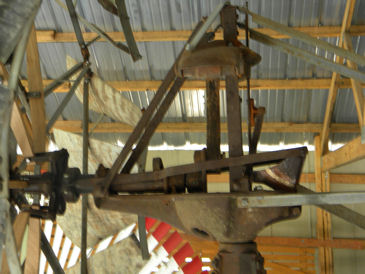

Hummer L Motor


Hummer L Motor


10ft Steel Wheel Hummer L

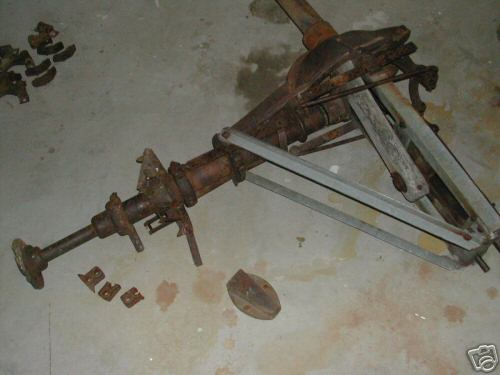

Hummer L Main Frame


10ft Wood Wheel Hummer L

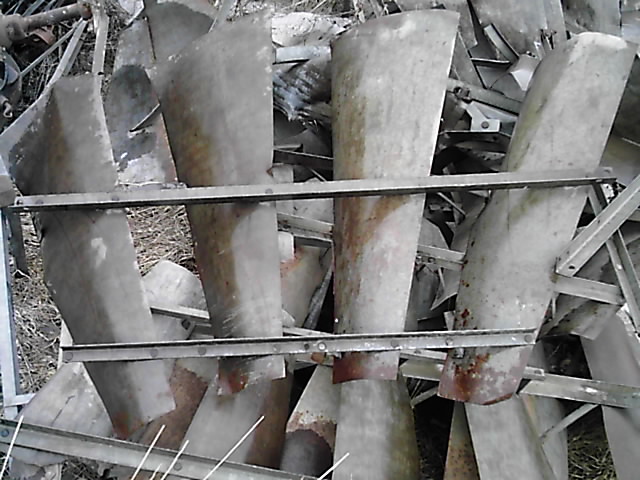

Hummer Steel Wheel Section


Tower Mounted Shut Off


Tower Mounted Shut Off


Steel Wheel Hummer L

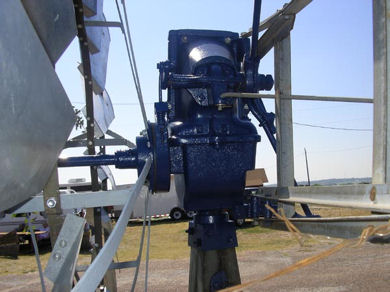

Wonder A Head


Wonder A / B Wheel Section

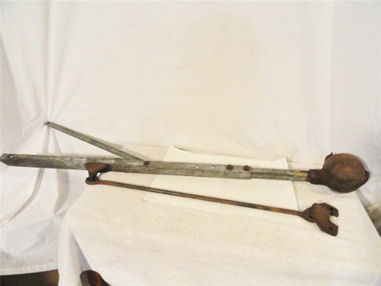

8ft Wonder B Govenor Weight


Wonder A Vane Stem


Wonder B Tower Cap


Wonder B Motor


Wonder A Head


Wonder B Bonnet


Wonder B Govenor Weight

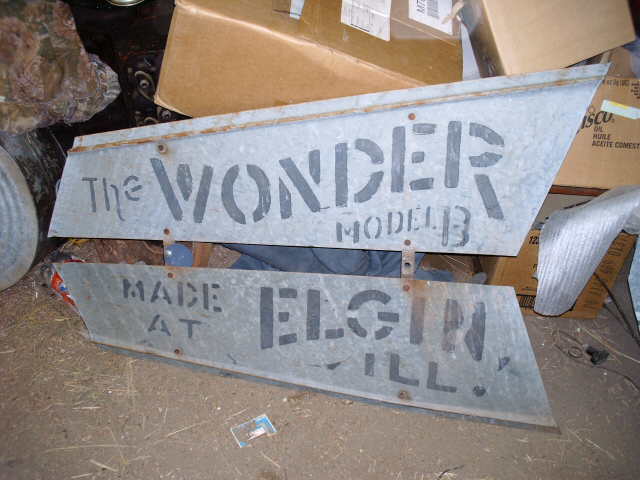

Wonder B Vane

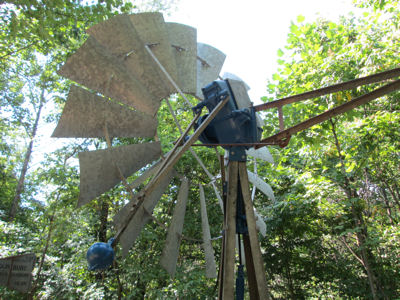

Wonder B Head


Wonder B Sail (late) & Arm


8ft Whizz

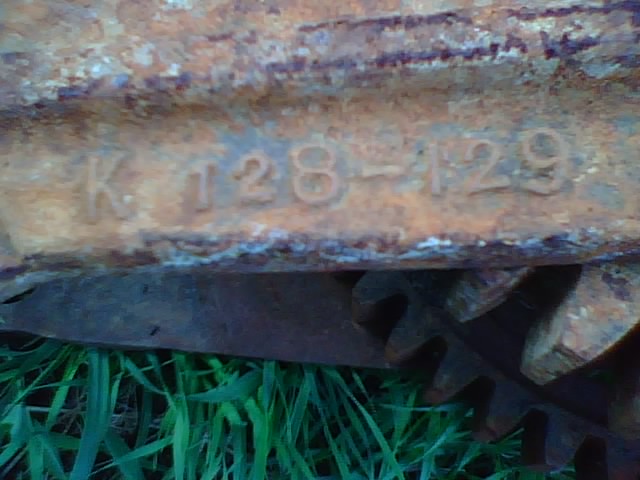

Late Style Wonder B Pitman


Late Style Wonder B Pitman


Tip Top Loop Type

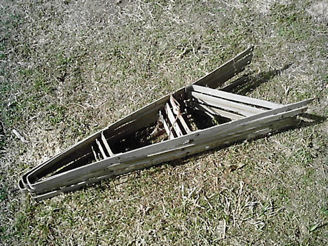

Tip Top Vane

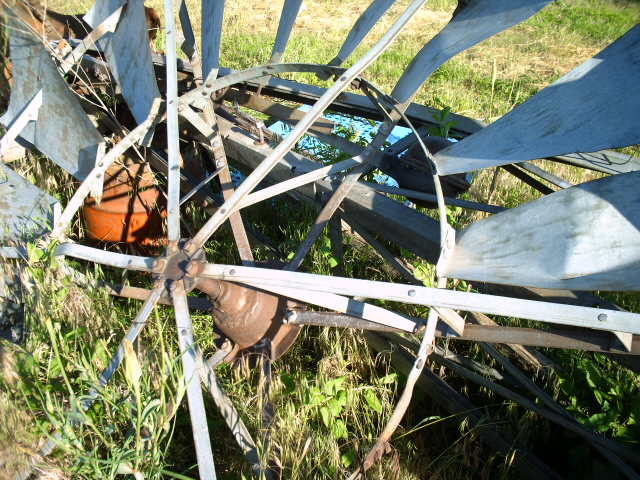

Tip Top Hub & Wheel Arm


Tip Top Motors Rocker & Channel Styles


Tip Top Motor Channel Style


Tip Top Loop Style


Tip Top Head, Loop Style


Tip Top Spokes

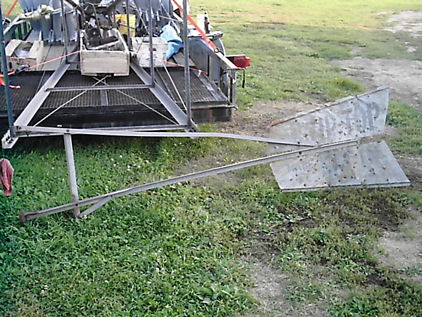

Tip Top Channel Style Vane stem


12ft Rocker arm Tip Top


Wonder A Vane & Stem


Terrible Swede Vane

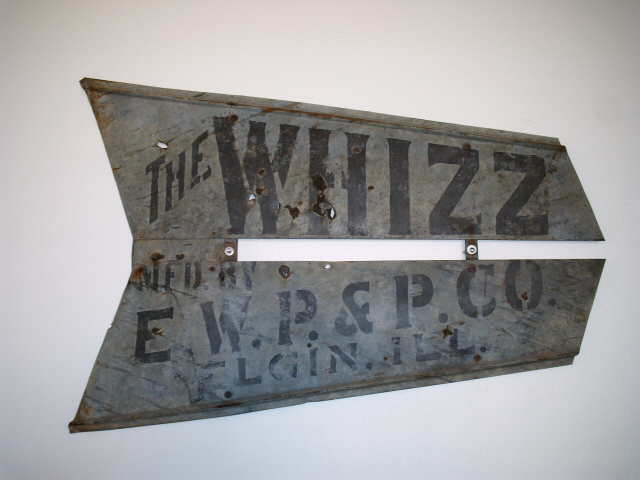

Whizz Vane


Vane Sheet

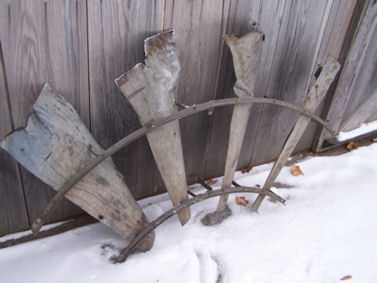

Whizz Wheel Section


New Elgin Wheel

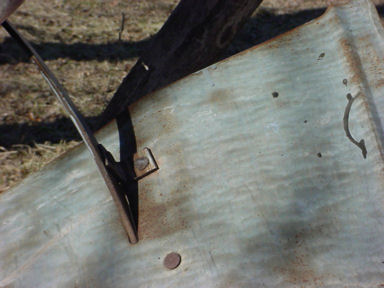

New Elgin Sail & Brace (back)


New Elgin Sail & Brace (face)


New Elgin R Head


New Elgin R Govenor Weight


.

6ft New Elgin Model R Vane
(stem from a Challenge 27)

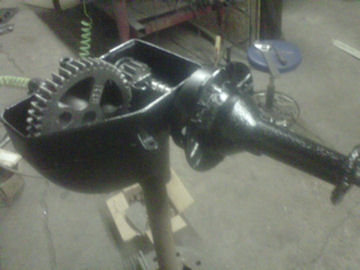

6ft Elgin R w/o Gear Gaurd or Bonnet


6ft Wonder B


Hummer F Model


6ft Wonder B


8ft New Elgin Model R


8ft New Elgin Model R

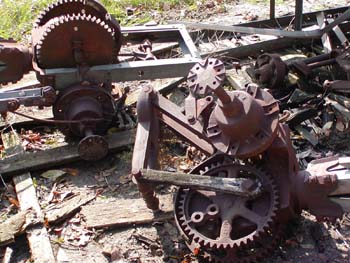

Tip Top Motor Rocker Style


Tip Top Motor Rocker Style


Model E Stub & Motor


Model E Tower Cap


Model E Motor & Hub


Model E Motor & Hub


10ft #2 Model


Model E Wheel Section


Model E Wheel Section


Wonder A Governor Weight


Wonder A Governor Weight


Wonder A Governor Weight

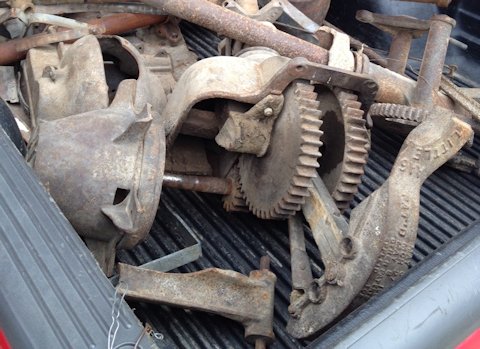

8ft Little Giant Motor


8ft Little Giant Motor


8ft Little Giant Motor

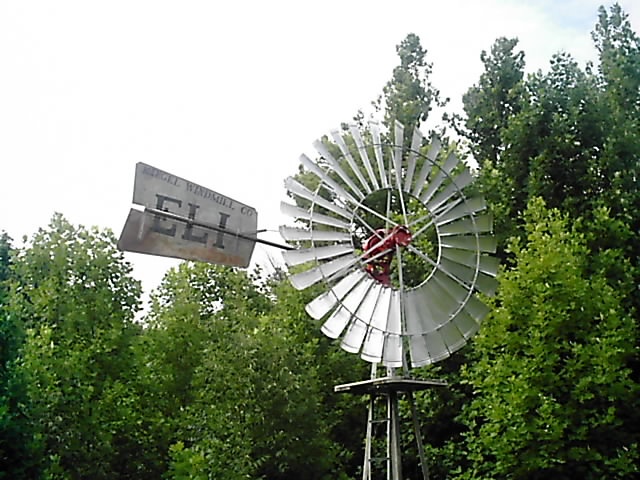

Eli


Eli Sails


Eli Vane

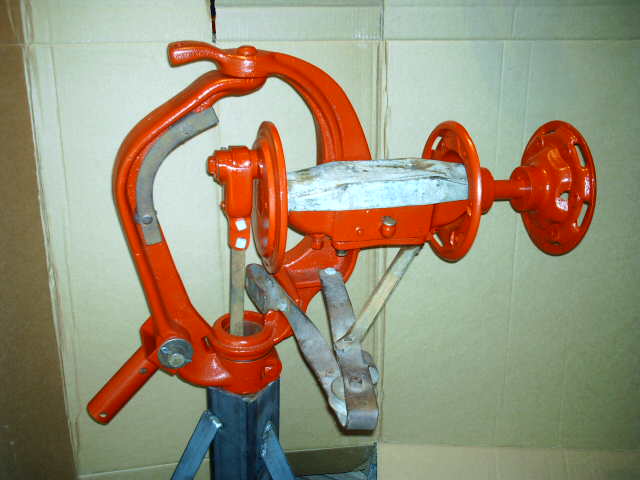

Eli Head


8.5ft Direct Stroke


Vane

.


Early Version with Wood Spokes & Stem

Eureka

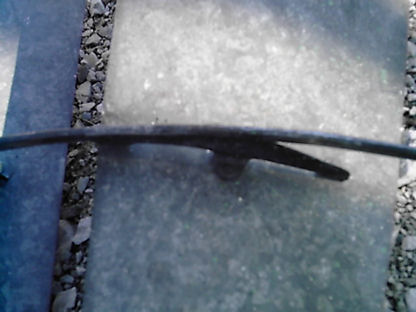

Outer Sail Brace

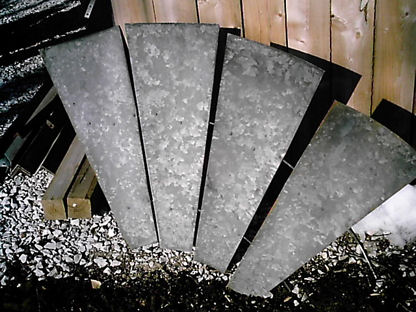

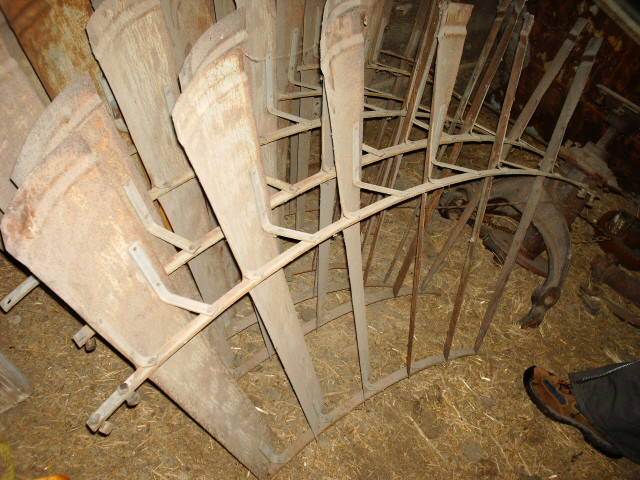

10ft Wheel Section Back


10ft Wheel Section Face

Fairbanks-Morse

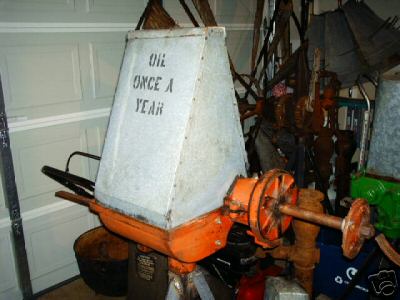

Early WG Tin Bonnet


Early WG Case For Tin Bonnet

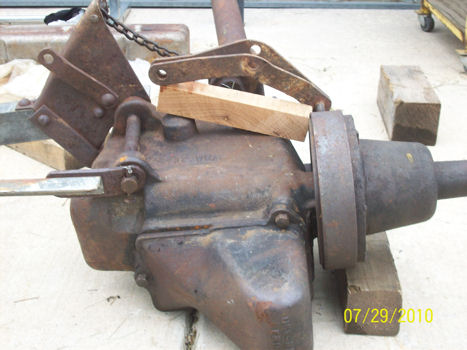

WG / Model 33 Brake Linkage


WG Vane


WG Head With Cast Bonnet

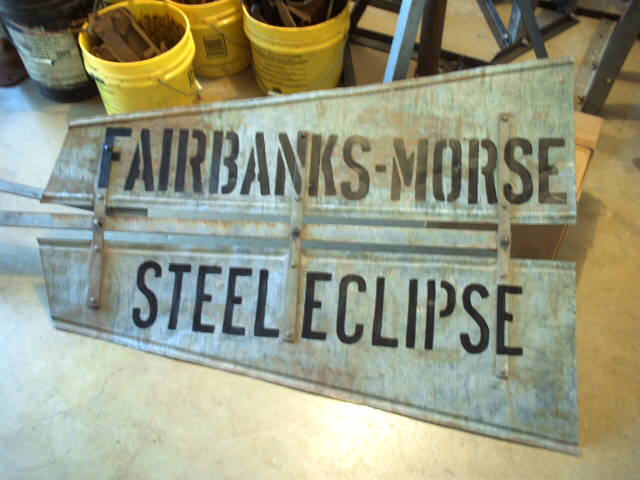

Fairbanks Steel Vane

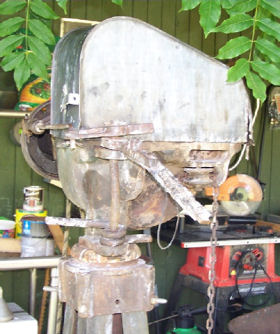

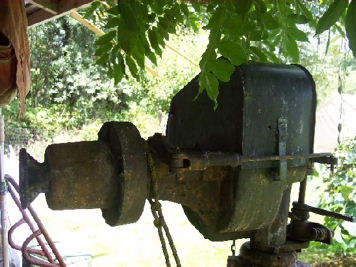

Model 40 Wheel & Vane


WG Sail Brace (upper)


WG Sail Brace (lower)


Model 30 Motor


Model 30 Hub Profile
As Made By Woodmanse


Model 30 Bonnet
AKA Woodmanse GB


Model 30 Vane, Stem & Hinge Castings


Model 45 Bonnets

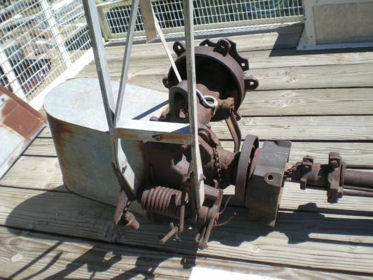

Model 45 Vane Hinge Assembly


Eclipse Model 45 Vane

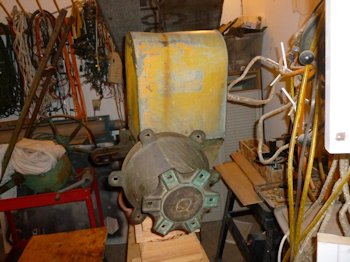

10ft Model 45 Hub


8ft Model 45 Hub


Vaneless Main Frame


Pre 1904 Fairbanks Steel Model Head


1893-1904 Model Fairbanks


Model 45 Bonnet


8ft Model 33 Motor


1893-1904 Fairbanks Geared Hub


Model WG


Model WG Worm Gear Assembly


Model 45


8ft Model 45


Model 45 Race, Tower Cap & Stay

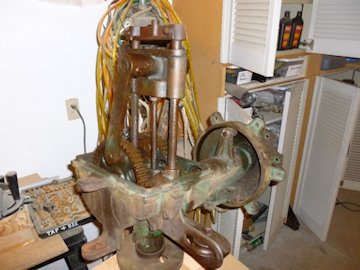

Model 45 Head ( Woodmanse Mfg'd)


8ft Model 45


8ft Model 45

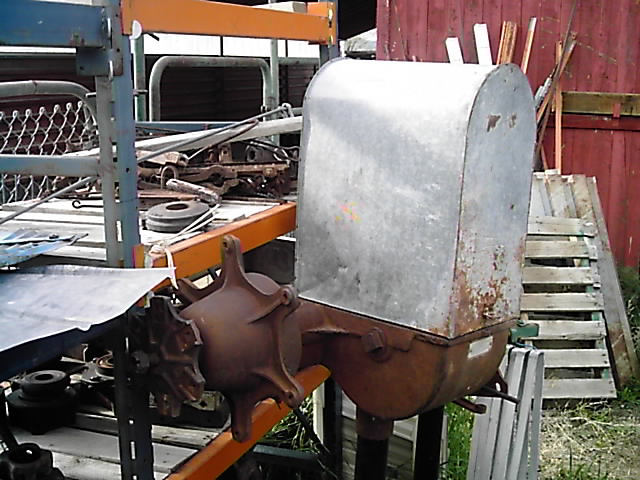

10ft Model 45 HD

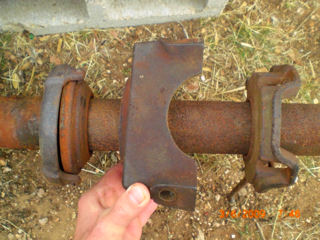

Model 45 Tower Cap

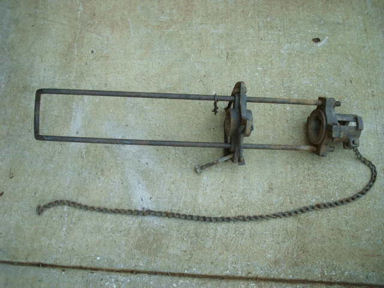

Model 45 Pull-Out Swivel


Model 45 "Mailbox" Bonnet


Early Steel Eclipse Tower Cap


Early Steel Eclipse Tower Trueing Center


Model 45 ID Plate


Model W Gears


Model W Brake Assembly


Model W Hub, etc

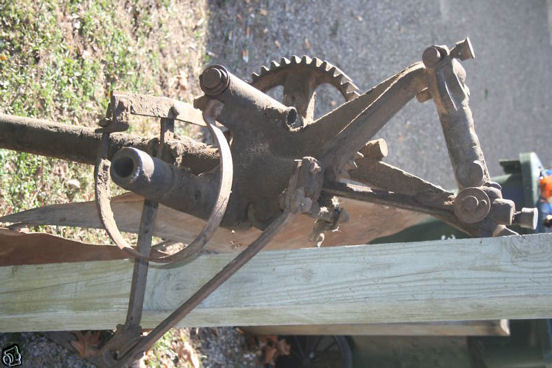

1905 Model W Steel Eclipse


1905 Model W Steel Eclipse


1905 Model W Steel Eclipse


1905 Model W Steel Eclipse


1905 Model W Steel Eclipse


 6ft Model 33 Vane Motor & Wheel Parts


Model 33 Eccentic Drive
AKA Woodmanse GB


Model 33 Vane Hinge Castings

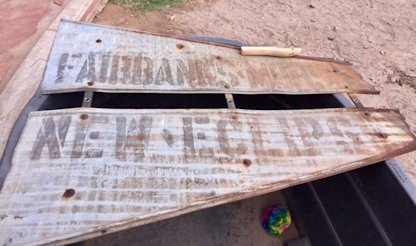

 Model 33 New Eclipse Vane

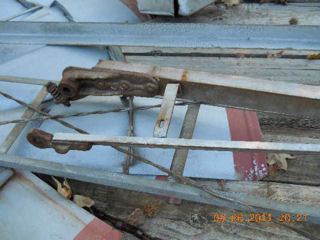

Model 33 Vane Hinge


 Model 33 Wheel

AKA Late Woodmanse


Model 33 Eccentic Drive

AKA Woodmanse GB


6ft Model 33 Vane


 6ft Model 33


 6ft Model 33 Vane

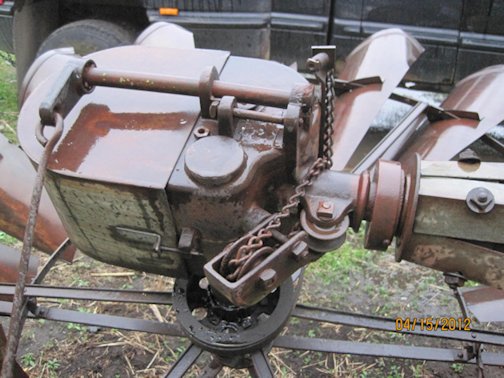

Model 37
(Modified A.W. Run In Oil Giant)


Model 37
(Modified A.W. Run In Oil Giant)


Model 37
(Modified A.W. Run In Oil Giant)


Model 37
(Modified A.W. Run In Oil Giant)


Model 37 Brake Mount
(Modified A.W. Run In Oil Giant)


Model 37 Wheel
(Modified A.W. Run In Oil Giant)

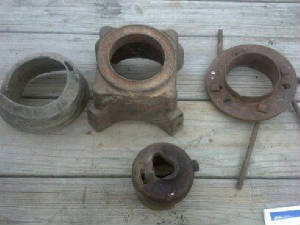

Model 37/38 Tower Cap & Stay


Model 37/38 Channel Iron Spoke


WG Tower Cap & Stay


"Standard" Model 40
(Made by Woodmanse using Stover Air-Flow Parts)


 "Deluxe" Model 40
(Made by Woodmanse using Stover M Parts)

10ft Model 45 Wheel Section
(as made by Woodmanse)


Model 33 Vane


Model 33 Hinge Castings


Model 33 Brake Linkage


Fairbanks Open Gear Vane


Fairbanks Open Gear Vane




Open Gear Model W Vane


Open Gear Model W Vane

Fairbury


Model #2 as Suderland Sun Mill

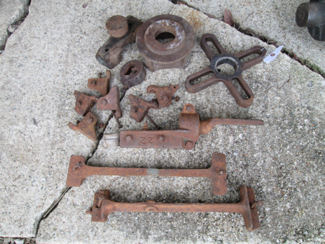

Model #2 Castings


Model #2


Model 4 / 5 Head
(removable mast)


Model 4 / 5 Head
(removable mast)


Model 4 / 5 Gate Gears
(exclusive pyramid shape))


Series 7 & 8 Vane


Sail Brace

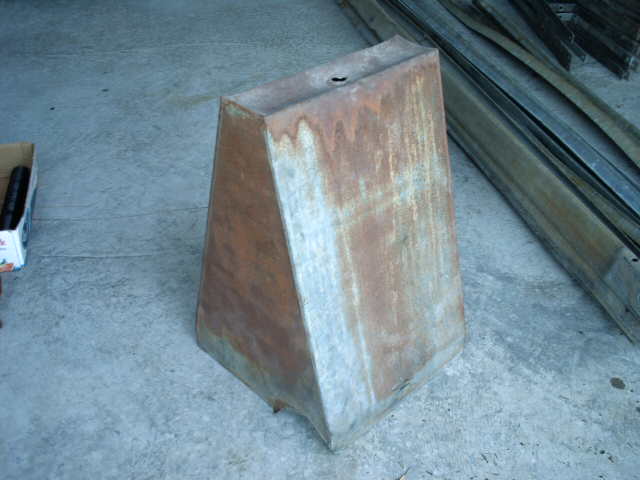

Series 7 & 8 Bonnet


Mischler Pioneer Sails


Tower Cap & Storm Stay


Tower Cap & Storm Stay


10ft Fairbury Wheel Arm

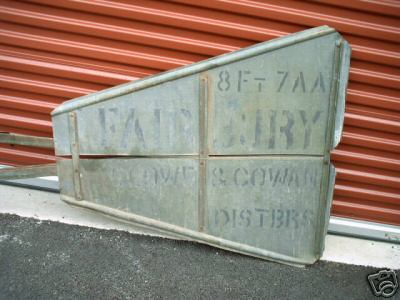

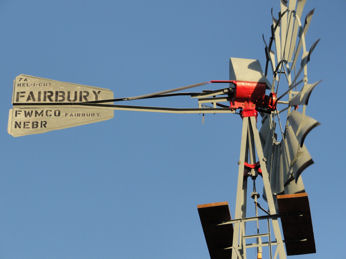

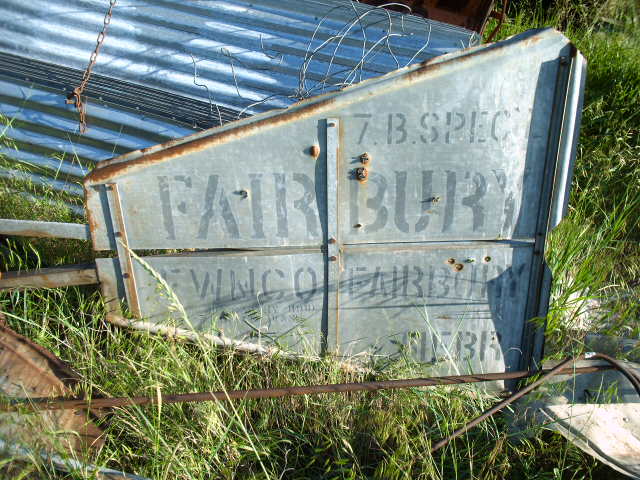

Model 7B Vane


Model 6 Vane


10ft Model 7/8 Wheel w/ Angle Iron Arms

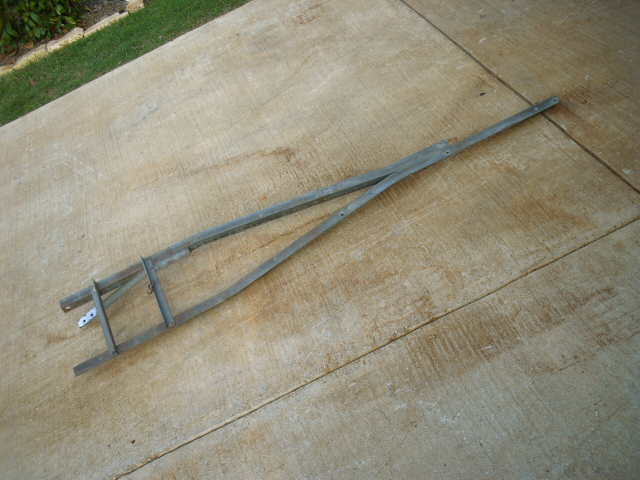

 Model 7AA/7B/7C/8 Vane Stem


Model 7AA/7B/7C/8 Bonnet


Model 7AA Motor


3 Post Tower Cap & Stay

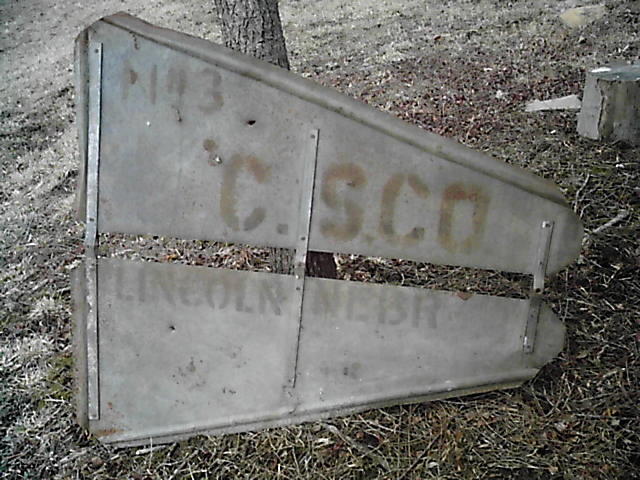

Model 3 Vane from the Cornell-Searll Co.

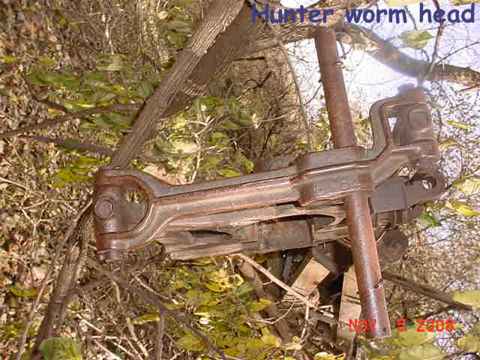

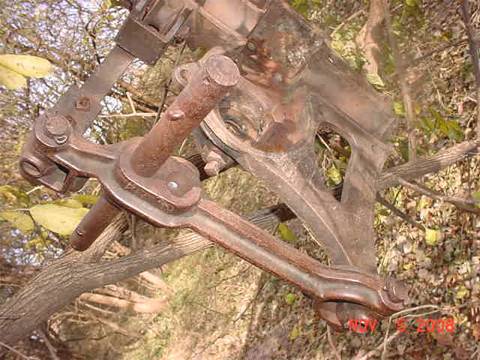

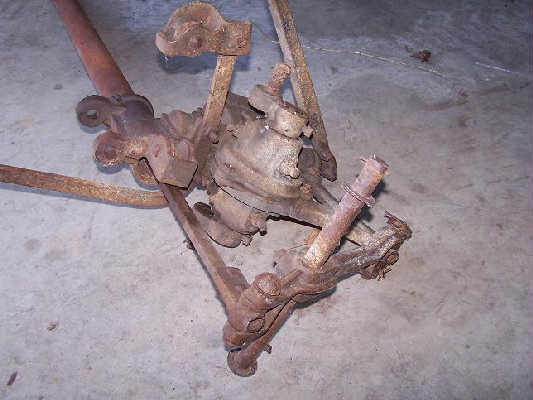

Model 6 Worm Drive Main Frame


Model 6 Worm Drive Main Frame


Model 6 Worm Drive Main Frame


Model 6 Worm Drive Main Frame


Model 6 Worm Drive Main Frame


Model 6 Worm Gear Motor


8ft Model 7A


7AA Gear Set

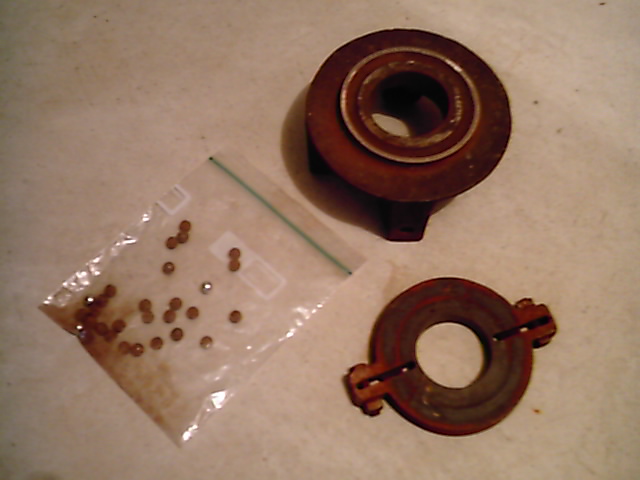

Late Style Tower Cap w/ Split Race

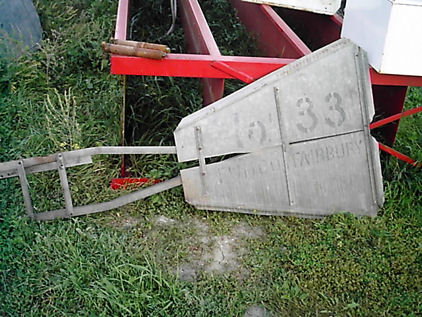

6ft Model 33 Vane

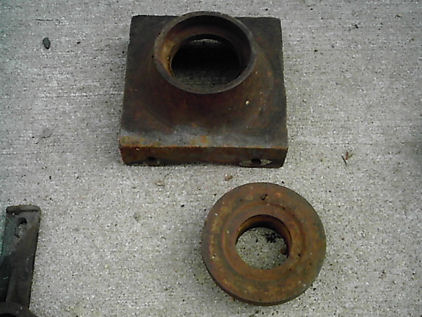

Unusual Recessed Race Tower Cap


#6 & Early #7 Vane Hinge


16ft No. 7AA Head

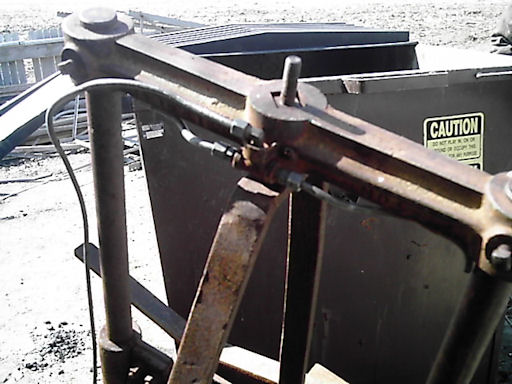

Oiler Tubing On 16ft Head

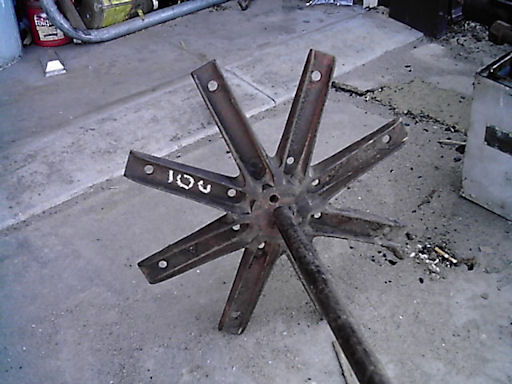

No. 1 Hub


6ft #33 Head


6ft #33 Head


6ft #33 Head

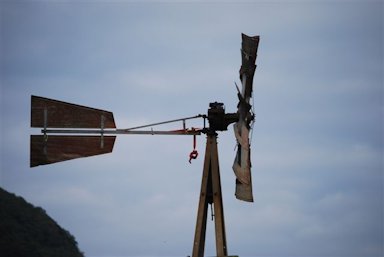

6ft Model 33


10ft Model #5


10ft Model #5


Mini Mill Head


Mini Mill Vane & Stem


Mini Mill Vane & Stem


10ft #7 Mogul

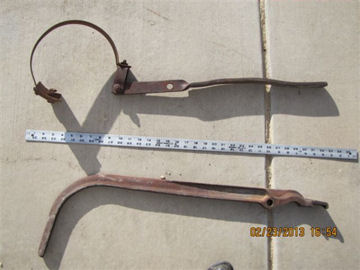

Series 7 Early & Late Brake Arms


Mishler Variant Vane


Mishler Variant Tower Cap & Race


Mishler Variant Motor

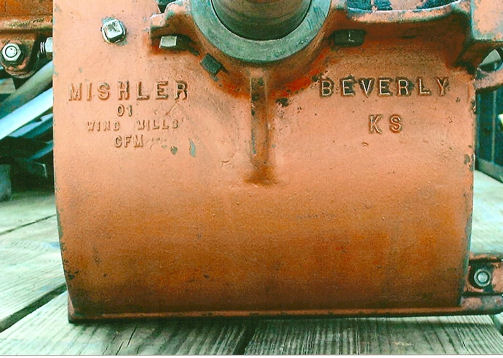

Mishler Variant Case


8ft Series 7 Wheel, Vane Stem & Spokes


 8ft Series 7 NOS Crated Wheel


8ft 7AA NOS Crated Motor


6ft C&P Machine Pioneer

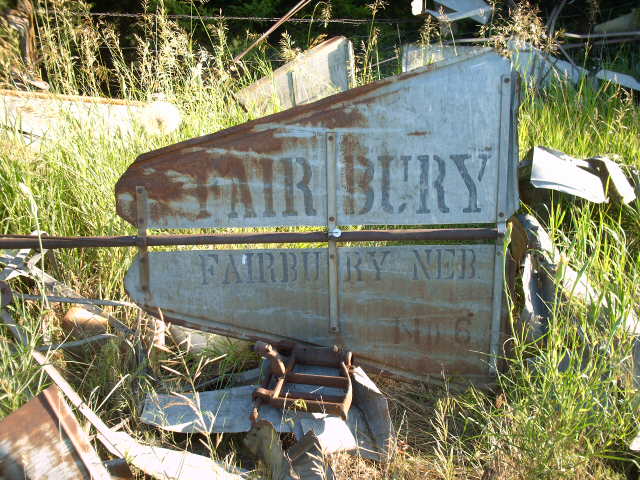

Model 6 Vane


6ft Model 7AA
6ft 7AA Vane


Flint & Walling


Direct Stroke Steel Star Frame

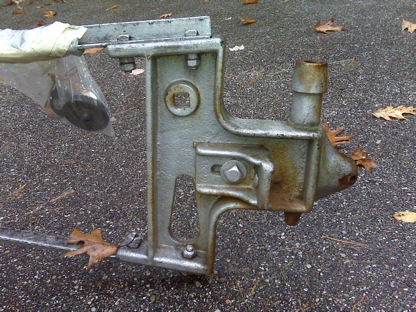

Direct Stroke Steel Star Vane Hinge


8ft DS Steel Star Frame


Back Geared Steel Star Frame


Back Geared Steel Star Gears, Etc


Back Geared Steel Star Hub


10ft Star 7 Spokes

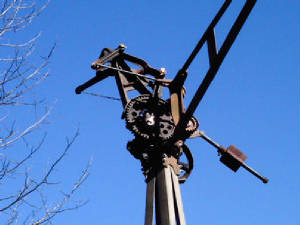

10ft Star 7


10ft Star 7

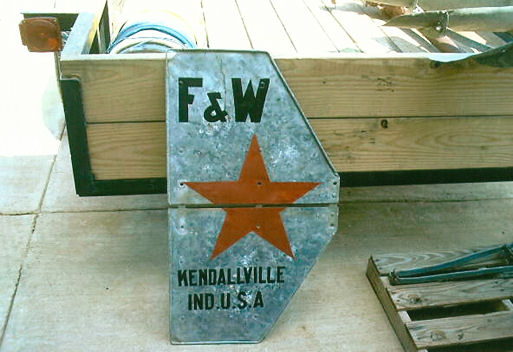

Star 37 Zephyr Vane


Star 37 Zephyr Sail & Brace


Star 37 Zephyr Bonnets


Star 24 Heads

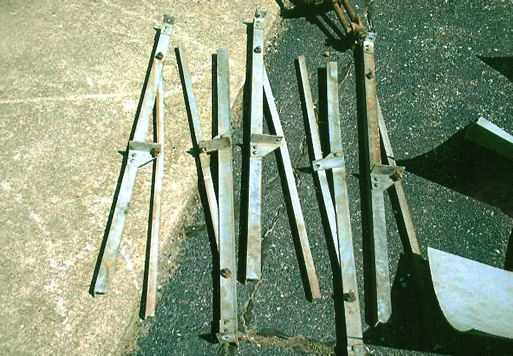

Star 24/26 Wheel Arms

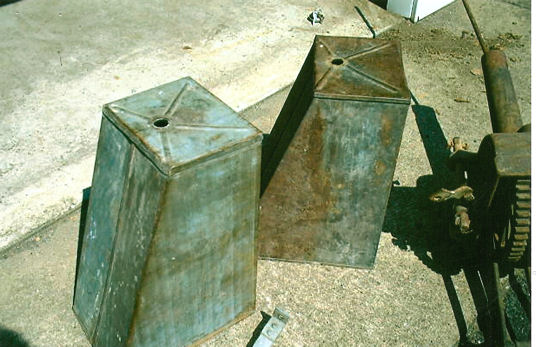

Star 24 Bonnets

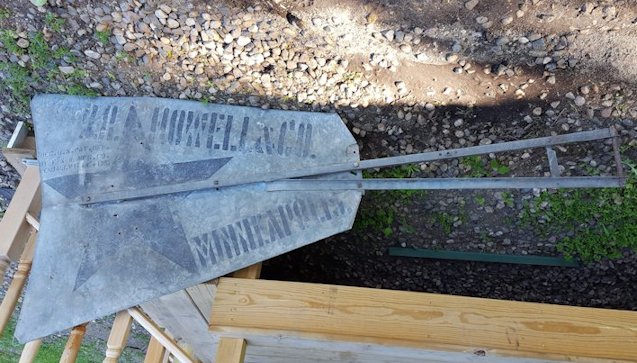

Star 24 Vane


Star 24 / 37 Tower Castings


Star 24 / 26 Sails & Brace


Star 26 Head


Star 24 / 26 Hub


8ft Star 24


Back-Geared Steel Star Head

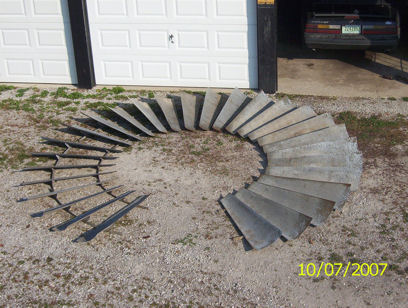

14ft Power Mill Wheel


Power Mill Sails & Braces


Early Tower Cap & Storm Stay for Steel Towers


Star 24 Head

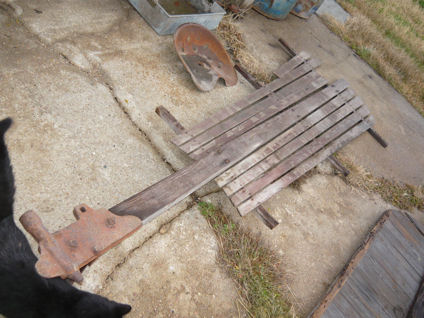

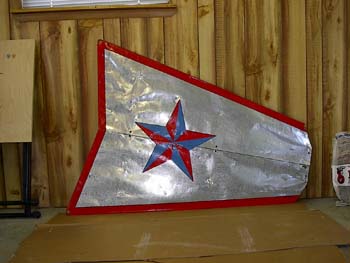

Original Star Vane

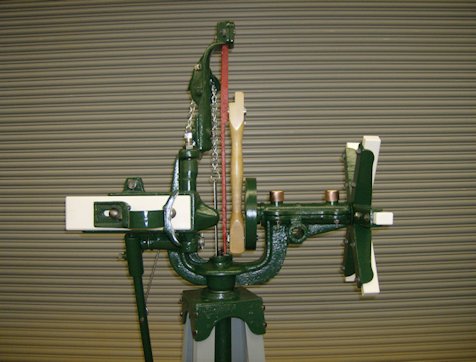

Early 10ft Original Star Head


10ft Original Star Wood Wheel Bands


10ft Original Star Vane (partial)


10ft Original Star Pump Pole
Guide, Wheel Hardware, Etc


10ft Original Star Motor


10ft Original Star, late version


10ft Original Star, late version


10ft Original Star, late version


10ft Original Star, late version


Star 12 Sail Brace


Star 24 Vane & Stem


Star 12 Head


Star 12 Head


Star 12 Head


Restored Model 12/15 Vane


Direct Stroke Steel Star Vane & Stem (single seam for 8ft)

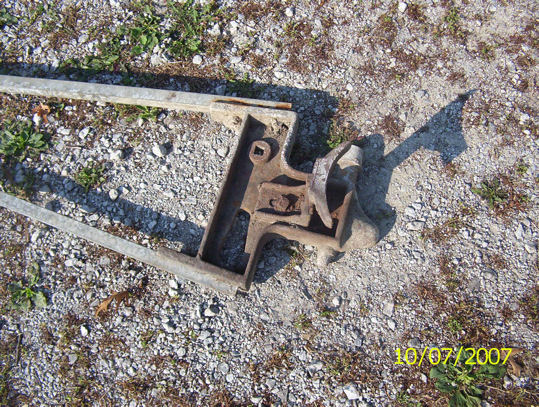

Direct Stroke Steel Star Tailbone Casting


12ft Original Star Head

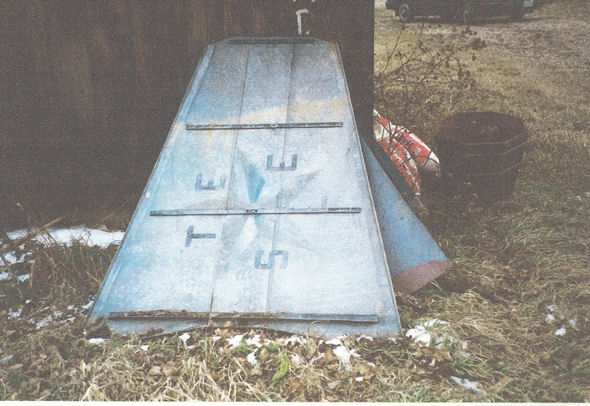

10ft Steel Star Vane (double seam)

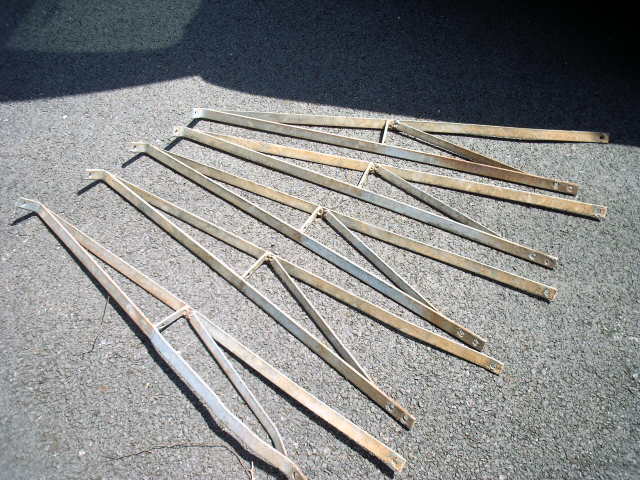

Star 37 Zephyr Wheel Arms


Star 37 Brake & Pull-Out Linkage

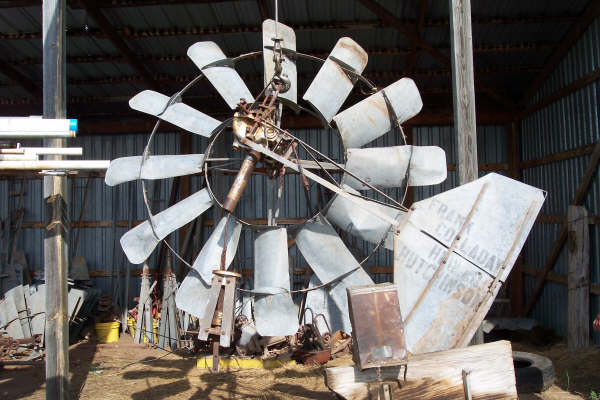

7ft Star 37


5ft Star 37 Wheel


5ft Star 37 Vane

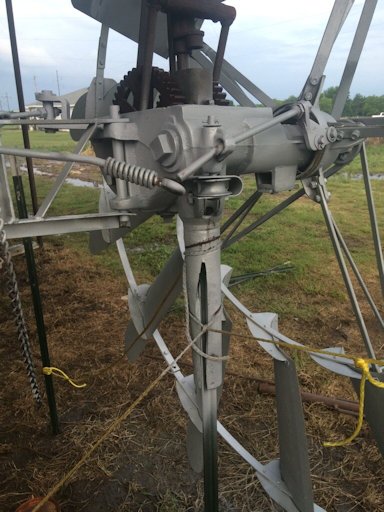

Star 37


Early 10ft Original Star


5ft Star 24 Vane


Star 15 Direct Stroke Head


Star 15 Direct Stroke Head

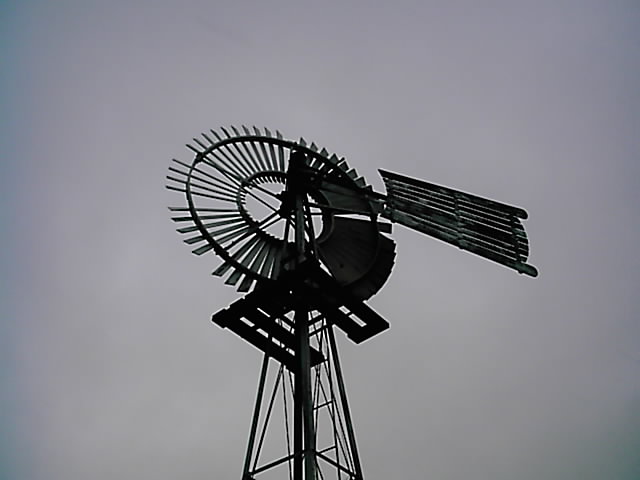

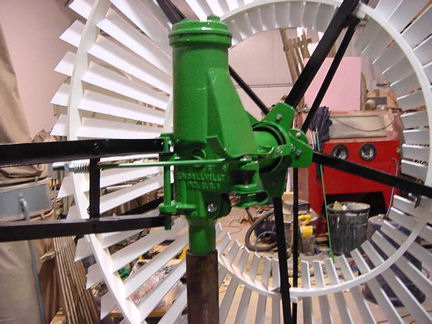

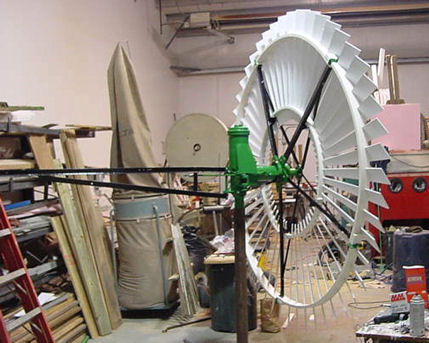

Star 26 Wood Version

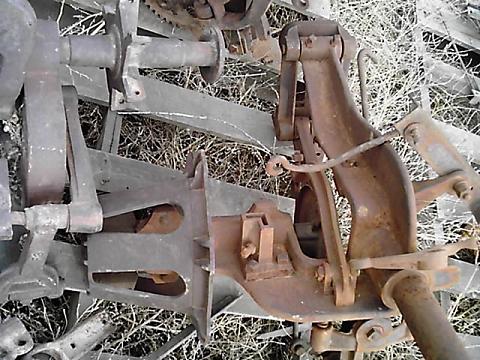

Star 15 Direct Stroke Motor


 Star 15 & 12 Wheel


Star 15 Direct Stroke Motor

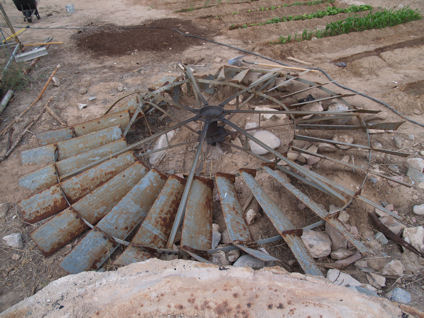

12ft Star 37 Wheel


14ft Model 7


5ft Star 37 Motor

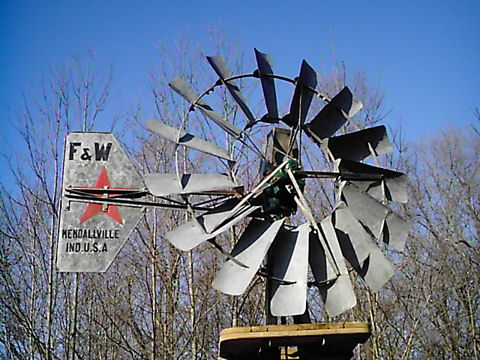

5ft Star 37 Zephyr


Star 26 Direct Stroke Motor


Star 26 Wood Version


Star 9


Star 9 Frame


10ft Leader


10ft Back-Geared Star 7


10ft Back-Geared Star 7


6ft Back-Geared Star 7


Star 13 Vane Hinge


Star 13 Direct Stroke Motor


Star 13 Direct Stroke Motor

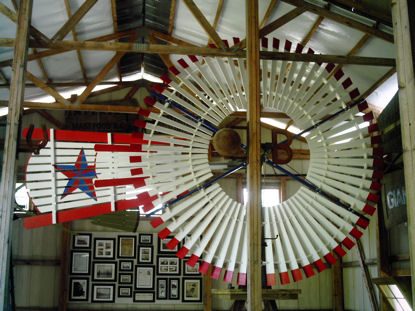

10ft Original Star

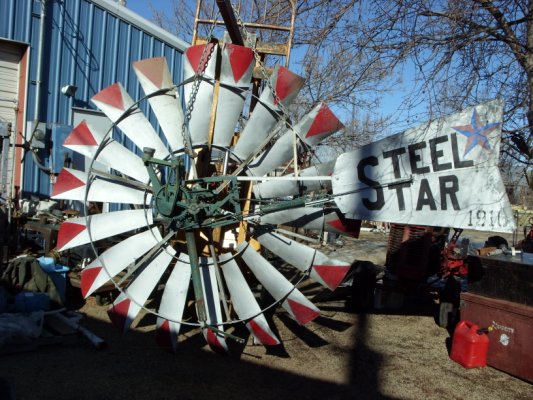

8ft Back Geared Steel Star

Forest


Open Gear


Open Gear

Fort Wayne

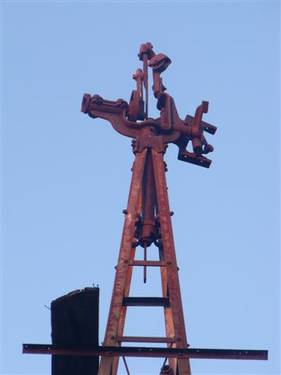

8ft Model

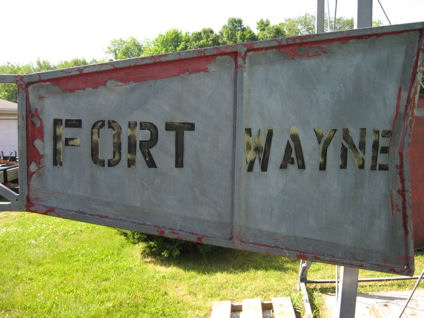

Vane

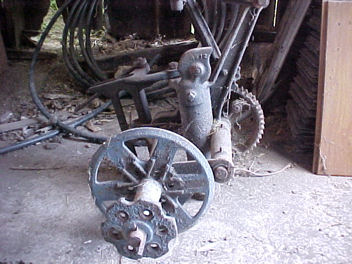

Motor, Stem & Gov. Weight

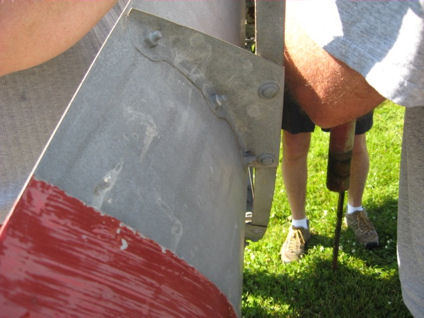

Sail Brace

Freeman

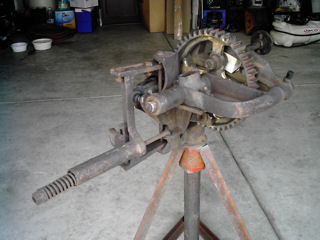

8ft Freeman Steel


8ft Freeman Steel


8ft Freeman Steel


6ft Improved Clipper Head

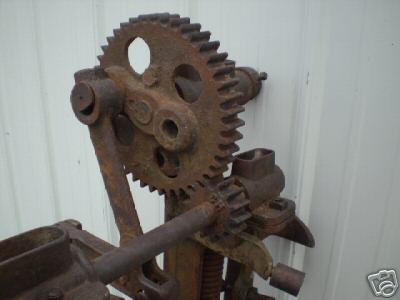

6ft Improved Clipper Gears


6ft Improved Clipper Vane, etc.

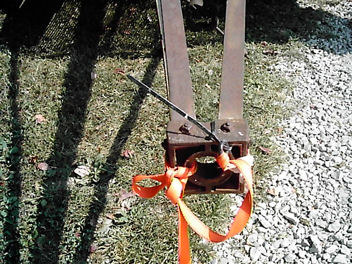

Clipper Storm Stay

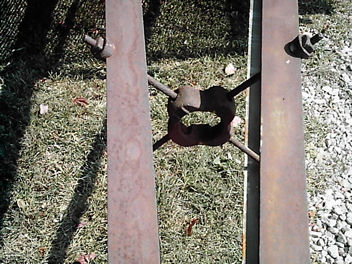

Clipper Tower Cap

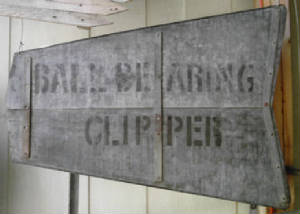

Ball Bearing Model Vane

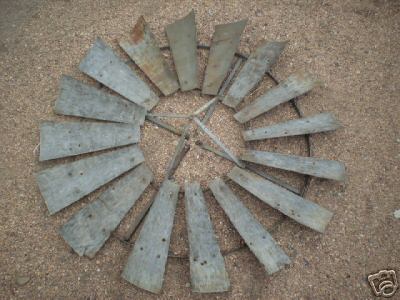

6ft Clipper Wheel


6ft Clipper Sail w/Brace

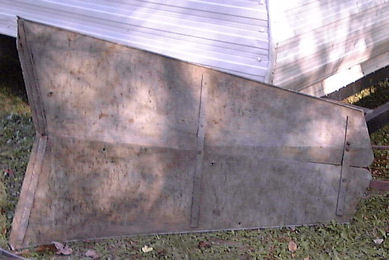

Freeman Improved Steel Vane

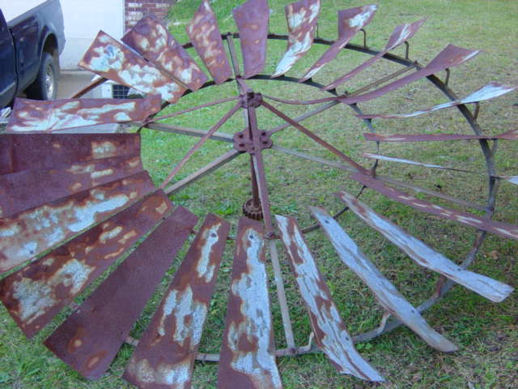

Freeman Improved Steel Wheel


Inner Sail Brace & Twisted Band/Spoke Mounting Surface


Wheel Sails

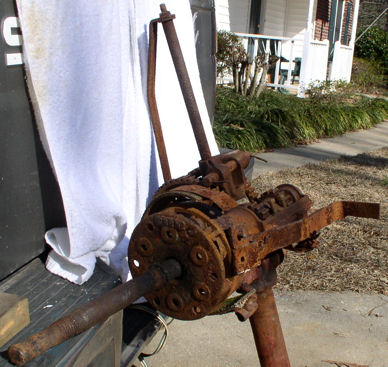

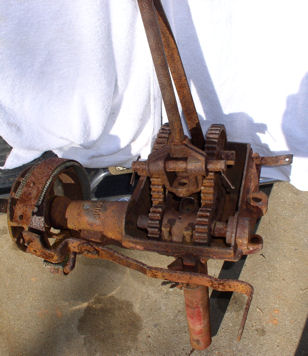

8ft Freeman Self Oiling Head
AKA Pearless Double Gear


8ft Freeman Self Oiling Head
AKA Pearless Double Gear


8ft Freeman Self Oiling Head
AKA Pearless Double Gear


8ft Freeman Self Oiling Vane w/ Stem

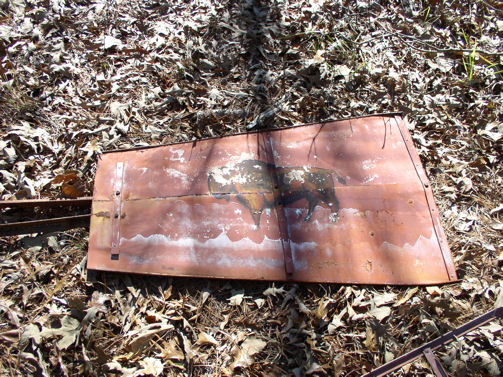

8ft Freeman Self Oiling Vane
(Buffalo Logo Not Original)

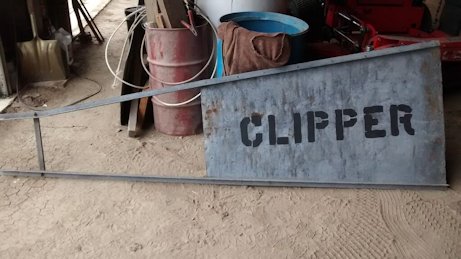

Early 8ft Clipper Vane

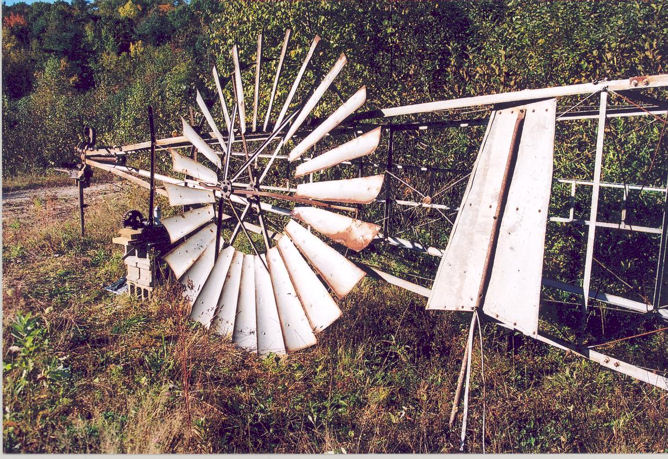

8ft Clipper Wheel & Vane


Self Oiling Head


Self Oiling Head


8ft Main Frame
Sold as Kenwood Single Geared by Sears Roebuck


8ft Wheel
Sold as Kenwood Single Geared by Sears Roebuck


8ft Wheel
Sold as Kenwood Single Geared by Sears Roebuk

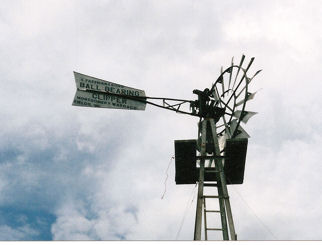

6ft Ball Bearing Clipper


Improved Clipper Motor


Improved Clipper Bonnet


6ft Improved Clipper Wheel

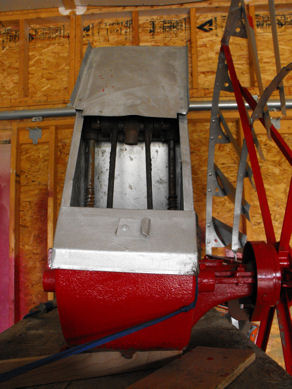

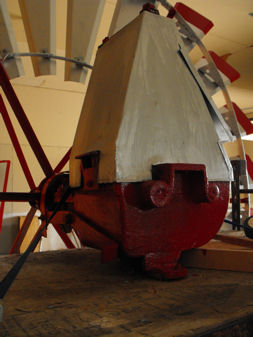

Exploded Bonnet on Head

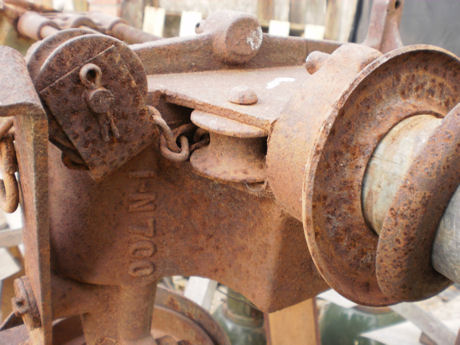

6ft Improved Clipper Head
AKA Peerless Single Gear


6ft Improved Clipper Head
AKA Peerless Single Gear


6ft Improved Clipper Vane


6ft Improved Clipper Stem
AKA Pearless Single Gear


6ft Improved Clipper Vane Hinge
AKA Peerless Single Gear

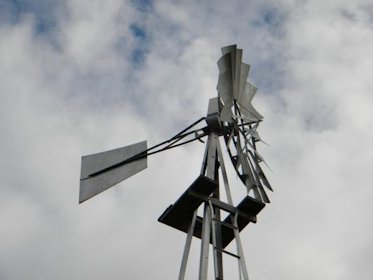

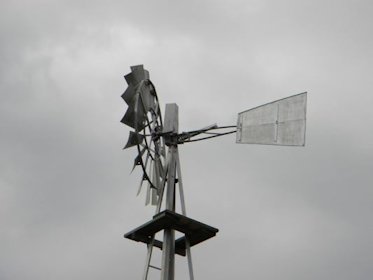

6ft Improved Clipper
Pull-Out & Swivel Assembly


6ft Improved Clipper Head ID
AKA Peerless Single Gear


6ft Improved Clipper Head Profile
AKA Pearless Single Gear


6ft Improved Clipper Head
AKA Peerless Single Gear


6ft Improved Clipper Head
AKA Pearless Single Gear


6ft Improved Clipper Head
AKA Peerless Single Gear


8ft Self Oiling Bonnet

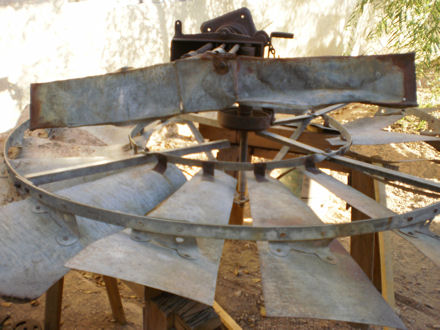

8ft Self Oiling Spiders w/ Modified Sails


8ft Self Oiling Bonnet


8ft Self Oiling Vane & Stem

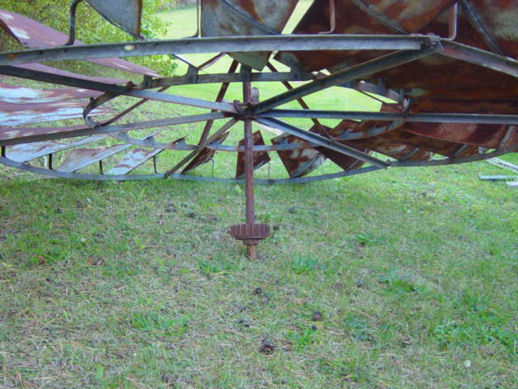

8ft Self Oiling w/ Modified Wheel Sails


Earliest Clipper/ Acme Open Gear

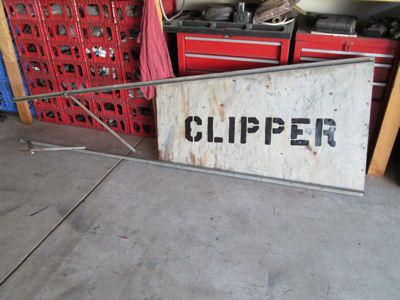

Earliest Clipper/Acme Vane


8ft U-Top Clipper Motor


8ft U-Top Clipper Motor



Early Clipper Vane


Early Clipper Vane

View other manufacturers on the additional pages titled Windmill Identification.

All pictures are protected by copyright laws and may not be used without the written permission of Windmill-Part.com or the original source.

CLICK HERE TO VISIT OUR EBAY STORE

Windmill-Parts.com
Specializing in Collectable, Antique & Vintage Windmills & Parts
 Buying, Selling, Consignments & Insurance Appraisals
940 597-7735
windmill.parts@juno.com
